Browse the parts available for the Pop-up Controller V10.
Prices shown in this catalogue are for reference only. Please get in touch for current pricing and availability.
The Pop-up Controller V10 replaces the factory Light Retractor Relay. Additionally, several accessories can be connected to it to allow more customizable pop-up control.
Main controller unit for the V10 line.
T18 Toyota Celica.
12-pin main connector, accessory ports X1 to X6 and a USB-C.

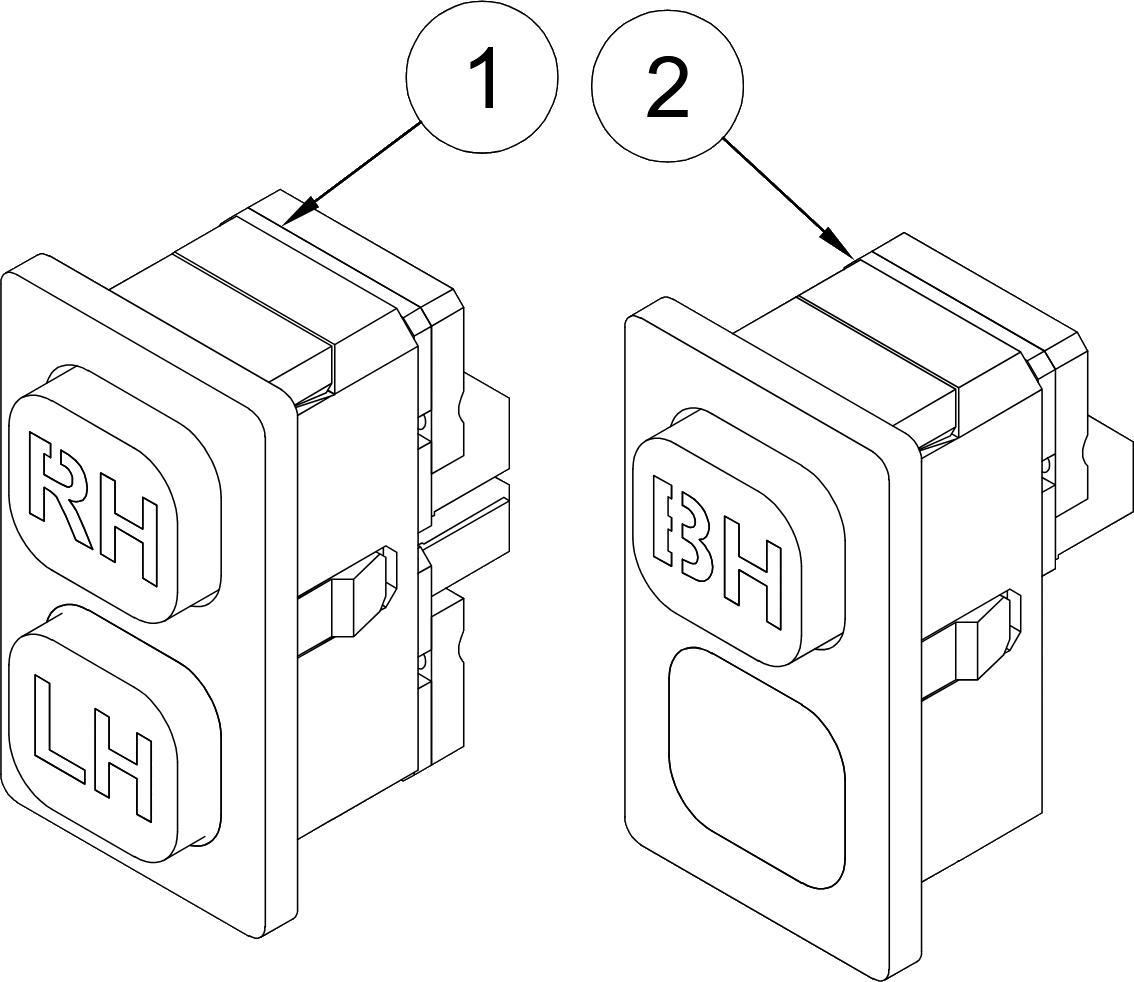

Installs in the large slot next to the parking brake and provides three wink buttons. It comes with either my custom 3D-printed buttons or custom AliExpress buttons. Supports various LED colors.
Pop-up wink control.
10321 Wink Button Cable and the controller's X1 to X4 inputs.
Accessory panel control for compatible interior mounting.
V8 and V10 Controllers.
Small-slot panel with a button to toggle Sleepy Eye mode and a switch to adjust the sleepy eye pop-up position. Supports various LED colors.
This panel can fit in any of the four small slots in the car.
The two small slots under the steering wheel may not be suitable for all installations.
Pop-up Sleepy Eye mode control.
10322 Sleepy Eye Controls Cable and the controller's X5 input.
Accessory panel control for compatible interior mounting.
V8 and V10 Controllers.
Use this cable to connect a Wink Button to any of the X1 to X4 connectors of a Pop-up Controller V10.
An adapter is needed if the AliExpress variant of the 10302 Wink Button is used. That adapter is included with that 10302 unit.
Wink Button-to-controller cable.
10302 Wink Button and 10300 Pop-up Controller V10.
1.7 meters.
V8 and V10 Controllers.
Use this cable to connect the 10305 Sleepy Eye Controls to the X5 connector of a Pop-up Controller V10.
The same connector is used on both ends, so it does not matter which end goes to the controller and which one goes to the controls.
Sleepy Eye Control-to-controller cable.
10305 Sleepy Eye Controls and 10300 Pop-up Controller V10.
1.7 meters.
V8 and V10 Controllers.
The receiver module is the central remote accessory component and is used together with the matching transmitter, expansion cable, and antenna.
Remote receiver for up to 4 actions.
10342, 10343, and 10344.
Slide-on mount on the controller.
V10 Controllers.
This transmitter is intended for use with the matching remote receiver module and provides a compact handheld control for up to 4 actions.
Default mapping: 1-RH Wink 2-LH Wink 3-BH Wink 4-Sleepy Eyes mode toggle
Handheld remote transmitter for up to 4 remote actions.
10341 Remote Receiver Module.
4-button format with matching receiver support.
V10 Controllers.
Use the expansion cable when connecting the remote receiver module to the controller's expansion port.
The cable serves to expand the I2c system. Can be used to connect any I2c module in theory.
Remote Receiver-to-controller cable.
10341 Remote Receiver Module and Pop-up Controller V10.
200 milimeters.
V10 Controllers.
The antenna is used with the remote receiver module as part of the complete remote accessory package for Pop-up Controller V10.
Remote system antenna for the matching receiver module.
10341 Remote Receiver Module.
Antenna lead assembly for remote accessory installs.
